The raw material water is worldwide getting shorter and shorter resulting in a more economical use of this resource. The drip irrigation is - independent of latitudes - an appropriate method of reducing water expenses and thus of even reducing the consumption.

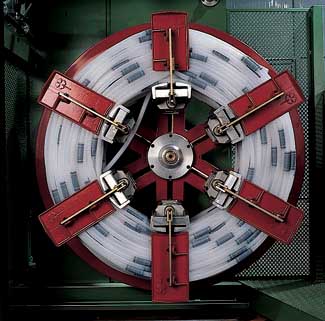

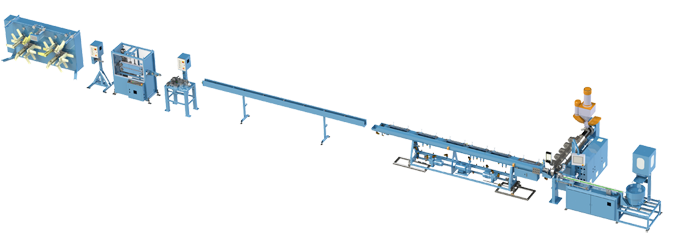

The drip irrigation pipe machinery excels with its synchronized process steps like dripper insertion, extrusion, drilling and coiling. High speed and continuous production are ensured with a dual coiler.

Fields of application
The system is ideal for the production with frequently changing drip feed distances or if pressure compensation is required.
Features
ldpe drip pipe
Use of pre-fabricated circular drip emitters
Nominal widths 12 / 16 / 20 / 25 mm
Drip capacity from 2 to 8 l/h depending on the drip emitter
Variable drip distance
Pressure-compensating drip emitters can be used
Functional principle of the machine
Completely assembled drip emitters are inserted in the extruded hose. The raised edges melt homogeneously together with the hose thus forming labyrinth channels. After cooling, outlet bores are drilled. The tube can be provided with different drip emitters during production. The machine can easily be changed over to the nominal widths 12 / 16 / 20 / 25 mm.
