Corrugated pipe production line
|
| Machinery for production of siphon corrugated pipe Machine for medical corrugated tubing

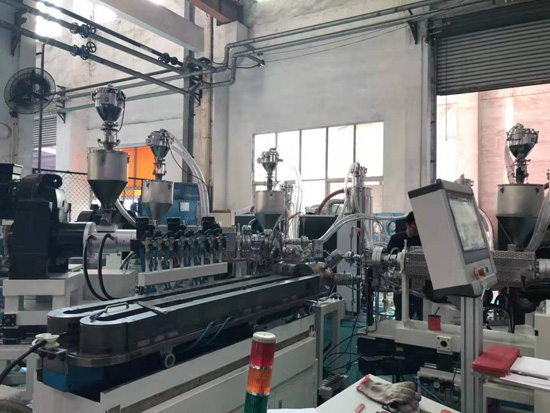

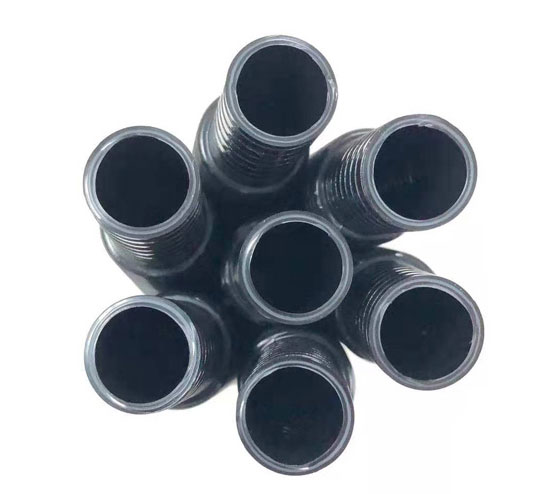

Machine for corrugated flat/round PE/PP post tensioning duct Machinery for corrugated PA tubing Extrusion line for pre-wired corrugated PP conduit Double layer corrugated pipe extrusion machine Double wall HDPE electrical duct extrusion line Corrugated duo pipe extrusion machine Multilayer corrugated PA tube machine flat corrugated pipe/duct machine perforated corrugated pipe machine Extrusion line for corrugated sink waste pipe |
|
|
 |
Variable mould blocks speed for tube thickness control
Variable mould block chain Length for adaption of pipe length |
 |
two types of pipe corrugator:
Internal blow moulding
Vacuum forming
Blow Moulding:
This technology consist of blowing low pressure (0,1-1,5 bar) through the die head spider into the center of the continuously extruded hot plastic tube. The air is retained by a plug with metallic or silicone washers.
The hot plastic material is expanded by the internal air pressure against the corrugation machined in the mould blocks which chill and holds the tube against the moulds to provide the desired geometry. Corrugated products formed by internal air must have constant I.D. dimension.
Vacuum forming:
This technology consists of pulling the hot plastic tube against the mould blocks by vacuum suction applied through the moulds applied to the plastic tube outside diameter surface. Vacuum from the moulds keep the tube against the moulds to provide the desired geometry. Corrugated products formed by vacuum may have variable I.D. dimensions.
Applications
cable protection
TV, telephone
glass fiber
electricity
control and computer cables
automobiles, machines and airplanes
medical applications
washing machines
dishwashers
|

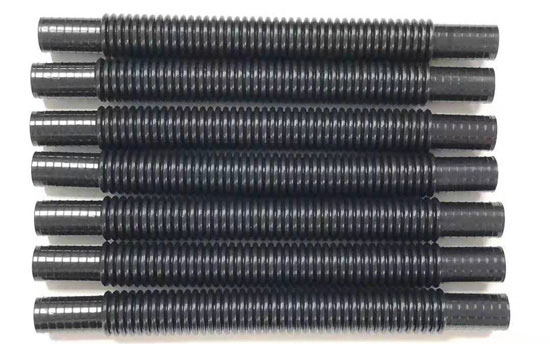

Corrugated tube machine for windshield washer hose (windscreen wiper feeding pipe) |
|
|
