Pipe extrusion line
Profile(structured) wall HDPE pipe extrusion line

Extruders and complete extrusion lines for the production of structured wall HDPE pipe which has a smooth interior and exterior with a hollow core .

Structured-wall pipe with smooth internal and external surfaces manufactured by spiral welding of PE-or PP –profiles. The extruded product is designed for non-pressure application, such as gravity sewerage, drainage, strom water, road culverts and retention tank systems in diameters up to 3000mm.

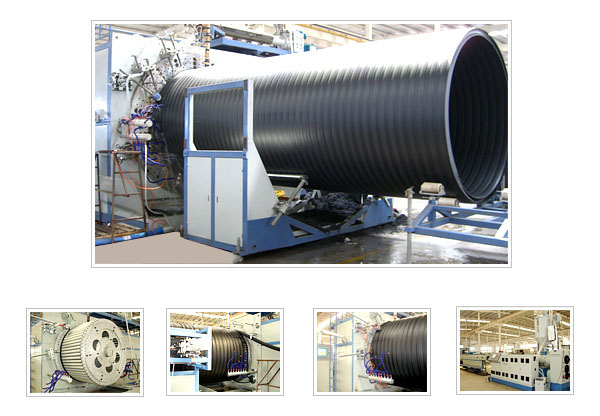

structured pipe extrusion
profile wall pipe extrusion plant

Model

Pipe range(mm)

Extruder

Installed power (kw)
Load factor 50%

Max capacity
(kg/h)

Overall dimension
(L×W×H)

Model

L/D

Power(kw)

SKRG800

200-800

SJ65×30
SJ55×30

30:1
30:1

55
37

140

200

18m×15m×3m

SKRG1200

300-1200

SJ90×30
SJ65×30

30:1
30:1

90
55

200

380

23m×15m×4m

SKRG1600

800-1600

SJ90×34
SJ65×30

34:1
30:1

110
55

240

580

25m×18m×6m

SKRG2200

1200-2200

SJ100×30
SJ65×34

30:1
34:1

160
75

300

650

30m×15m×7m

SKRG3000

1800-3000

SJ90×30
SJ120×30

30:1
30:1

90
200

400

850

32m×15m×8m
