Pipe extrusion line

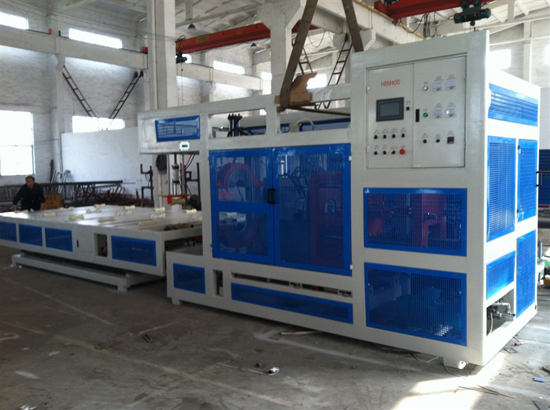

Automatic Belling machine/socketing machine





M/C ModelPipe range mm (mix.-max.dia.)Total power KW Socket forming methodCooling methodHeating ovenSocket shape
75d16-757tooling fixedair coolingfour ovensplain socket
110s20-1107internal calibrating mandrel and external pressurewater coolingsingle ovenplain socket & R-ring socket
110d20-1108internal calibrating mandrel and external pressurewater coolingdouble ovensplain socket & R-ring socket
160s50-16018internal calibrating mandrel and external pressurewater coolingsingle ovenplain socket & R-ring socket
160d50-16025internal calibrating mandrel and external pressurewater coolingdouble ovensplain socket & R-ring socket
250s50-25019internal calibrating mandrel and external pressurewater coolingsingle ovenplain socket & R-ring socket
250d50-25026internal calibrating mandrel and external pressurewater coolingdouble ovensplain socket & R-ring socket
315s110-31520internal calibrating mandrel and external pressurewater coolingsingle ovenplain socket & R-ring socket
315d110-31528internal calibrating mandrel and external pressurewater coolingdouble ovensplain socket & R-ring socket
450s200-45025internal calibrating mandrel and external pressurewater coolingsingle ovenplain socket & R-ring socket
450d200-45035internal calibrating mandrel and external pressurewater coolingdouble ovensplain socket & R-ring socket
500s225-50027internal calibrating mandrel and external pressurewater coolingsingle ovenplain socket & R-ring socket
500d225-50036internal calibrating mandrel and external pressurewater coolingdouble ovensplain socket & R-ring socket
630s315-63035internal calibrating mandrel and external pressurewater coolingsingle ovenplain socket & R-ring socket
630d315-63046internal calibrating mandrel and external pressurewater coolingdouble ovensplain socket & R-ring socket
710s450-71039internal calibrating mandrel and external pressurewater coolingsingle ovenplain socket & R-ring socket
710d450-71065internalwaterdouble ovnesplain socket & R-ring socket
