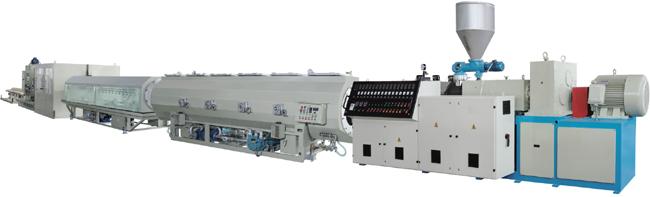

Pipe extrusion line
PVC pipe extrusion line, PVC pipe manufacturing machine, CPVC pipe making machine

Complete extruder and extrusion lines for production of PVC pipes in diameter from 16 to 800mm. we also design and manufacture machines for production of CPVC pipe and PVC foam core pipe.

To maximize throughputs at small pipe diameters, dual strand or four strand pipe extrusion for PVC pipe in diameter from 16 to 63mm can be supplied

Application: to produce variety of PVC pipe for water supply, drainage, cable protection ,etc


Feature:

Equipped with conical twin screw extruder or parallel twin screw extruder, adopt Optimized spider die with chrome-plating, ensure the melt plasticization homogenous and distribution uniform.

Equipped Stainless steel Vacuum calibration sleeve with water lubrication ring, twin-chamber vacuum tank with spraying cooling and semicircular Nylon support, to ensure fast calibration, increase the production capacity and lower the operation. These designs are especially good for big diameter pipe production and high speed production.

All of vacuum tank and water cooling tank is made from stainless steel, dual water supply pipe line with filtration system, water level and temperature control system and optimized positioning of the bayonet-type spray nozzles.

The twin or multi caterpillar haul-off unit is equipped with high quality rubber block, accuracy driving and control system ensure the speed stable and running reliable.

Accurate non-scrap cutting machine (less than 110mm) and planetary cutting machine ensure the cutting section smooth and uniform.

It can make the socket online if to equipped with automatic belling machine



PVC pipe extrusion machinery








Model Diameter(mm) Max Output(KG/H) Max Production Speed(M/MIN) INSTALLED POWER(KVA)
ET-PVC-63 16-63 120 15 60
ET-PVC-63-II 16-63 250 15 90
ET-PVC-110 40-110 120 15 70
ET-PVC-160 50-160 250 8 90
ET-PVC-250 75-250 250 8 90
ET-PVC-250-I 75-250 450 8 130
ET-PVC-450 110-450 450 4 160
ET-PVC-630 250-630 700 2 210
ET-PVC-800 315-800 900 1 260
